flushSASH
70mm PVCu
casement window
flushSASH
The flushSASH window was developed over a decade ago by Whiteline. The aim was to manufacture an authentic timber-style design using high-performance PVCu.
KEY FEATURES
• Fusion-welded or optional mechanically-jointed frame
• Ultra-low profile glazing gasket means the gasket is almost invisible
• HD friction stays for top-hung windows.
• HD easy-clean/ fire escape friction stays for side-hung windows
• High security, multi-point locking system comprising of roller-cam bolts, twin shoot-bolts and optional hinge bolts
• Black, white or grey, warm edge spacer bar
• Internally glazed for enhanced security
• Double-glazed unit uses soft coat energy-saving glass with warm-edge spacer bars
-
SpecificationDOUBLE-GLAZEDHigh-tech double-glazed sealed unitsHINGESCotswold easy-clean hingesDIRECTIONAL KEEPSecure keep for expanding bolts with night-vent positionTRICKLE VENTSPart F-compliant trickle ventilationFRICTION STAYAdjustable stays for top hung windowsSHOOT-BOLTSShoot-bolt locking (shown engaged) form multi-point lockingROLLER BOLTSExpanding roller lock and night-vent keepNIGHT-VENT KEEPExpanding roller lock and night-vent keepHINGE BOLTHinge bolts contribute to multi-point lockingPULL-IN BLOCKPull-in blocks ensure sash alignmentOFFSET HANDLEWhite (available in 8 colours)WERWindow energy ratingU-VALUEWindow energy ratingSIGHT LINEWidth obscured by the frame and sash combinedFRAME DEPTHDepth of outer frame and minimum reveal size100% LEAD FREENo lead stabilisers used in manufactureCERTIFICATIONConforms with the applicable requirements for the UK
-
Standard finishesSTANDARD FINISHES INCLUDING DUAL FINISHESWhiteWhite PVCuWhitegrainOakOak on whiteRosewoodRosewood on white
-
Alternative finishesALTERNATIVE FINISHES INCLUDING DUAL FINISHESRAL7016 AnthraciteRAL7038 AgateRAL7012 BasaltChartwell GreenCreamSchwarzbraun (black-brown)Irish oakAnteakColourTEK spray finishesWide choice of foils
-

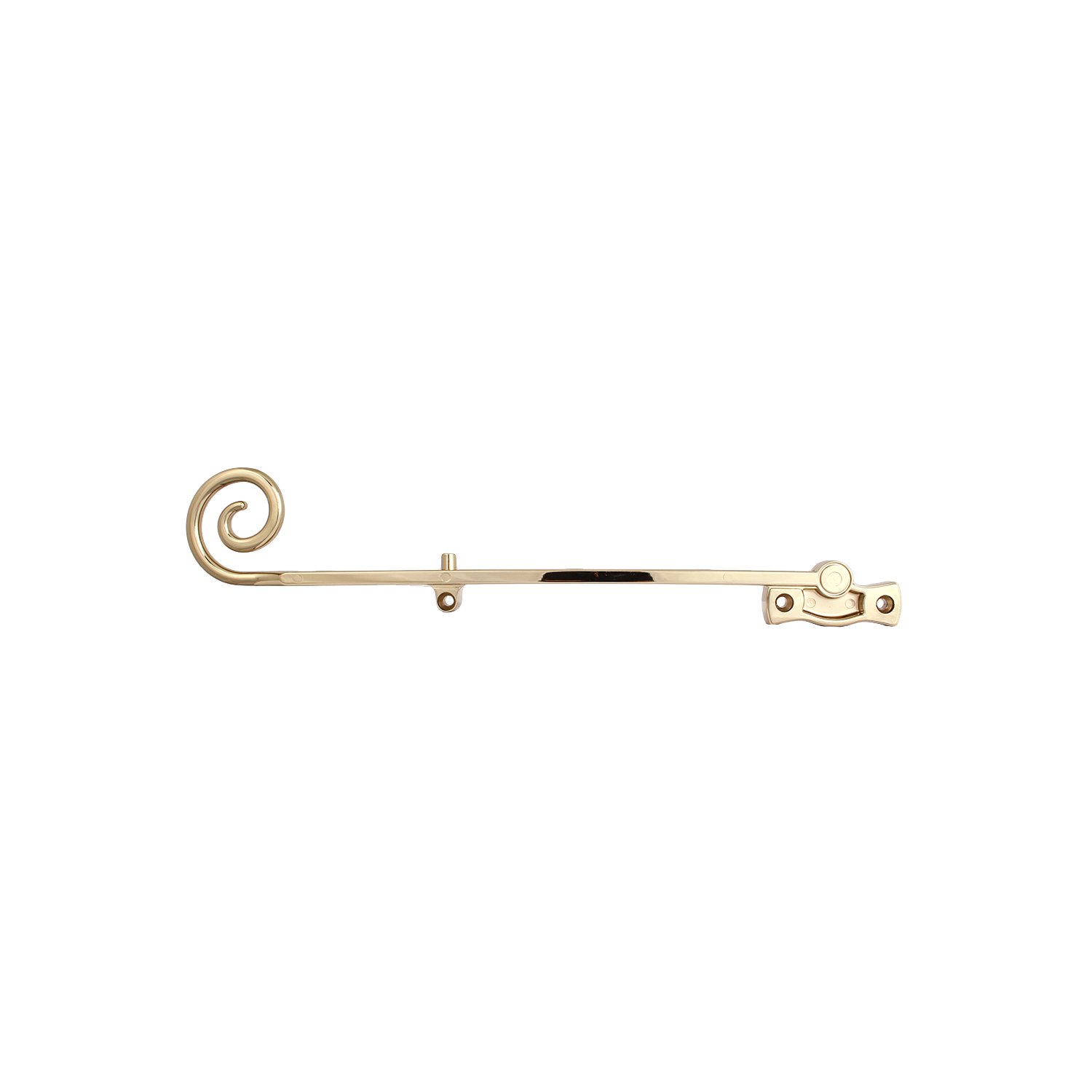

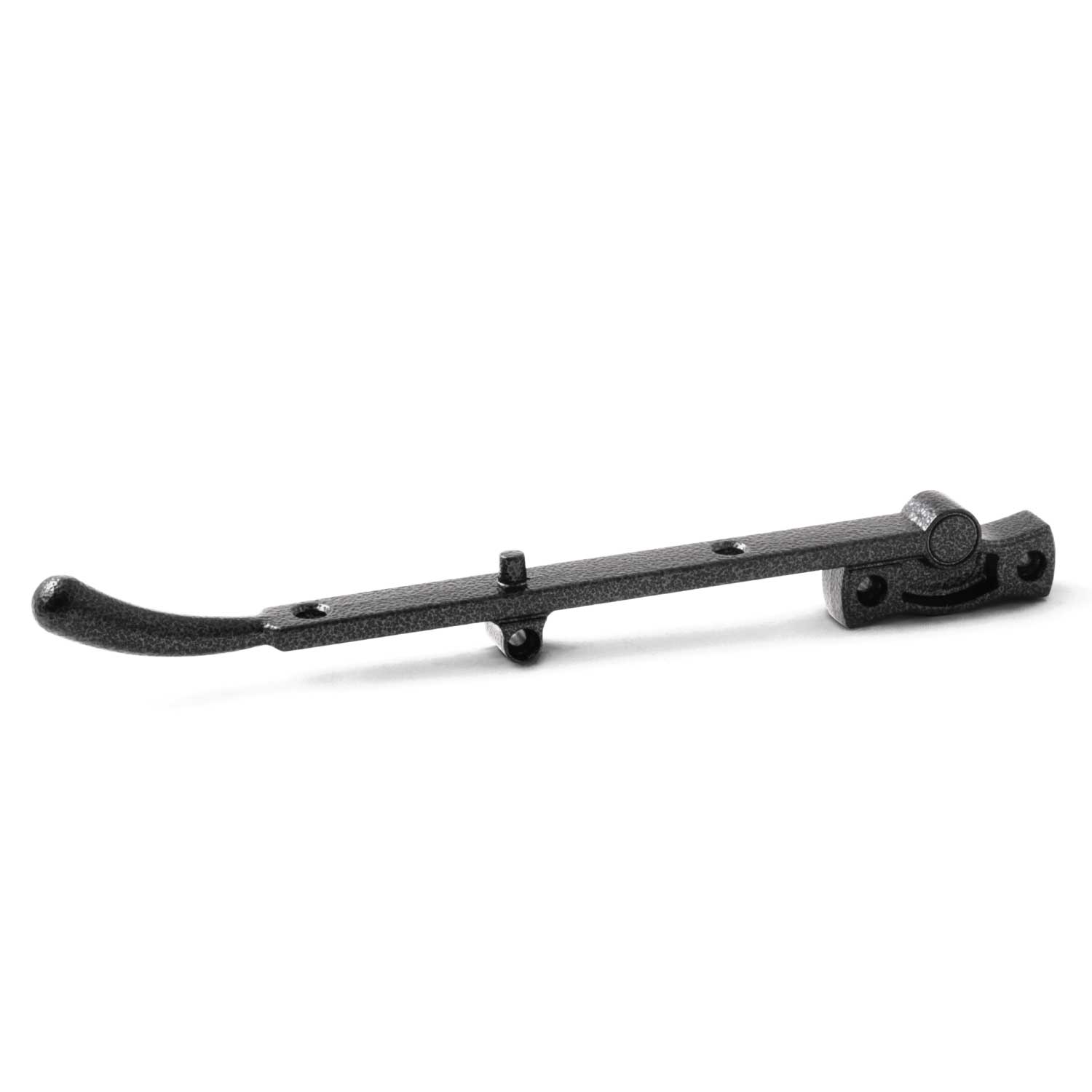

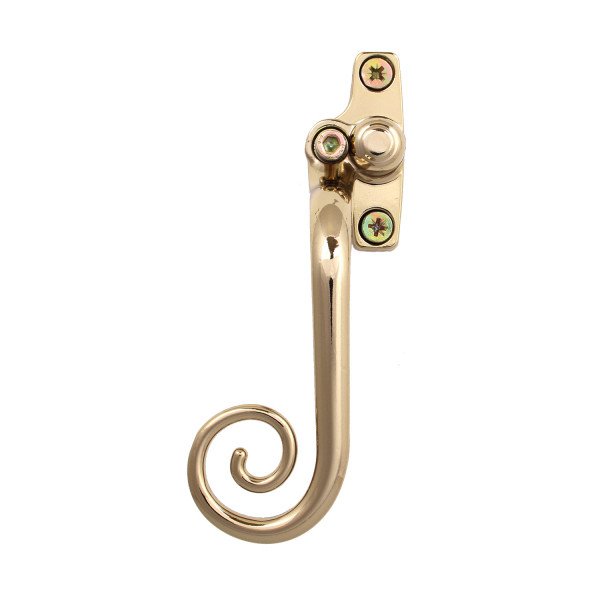

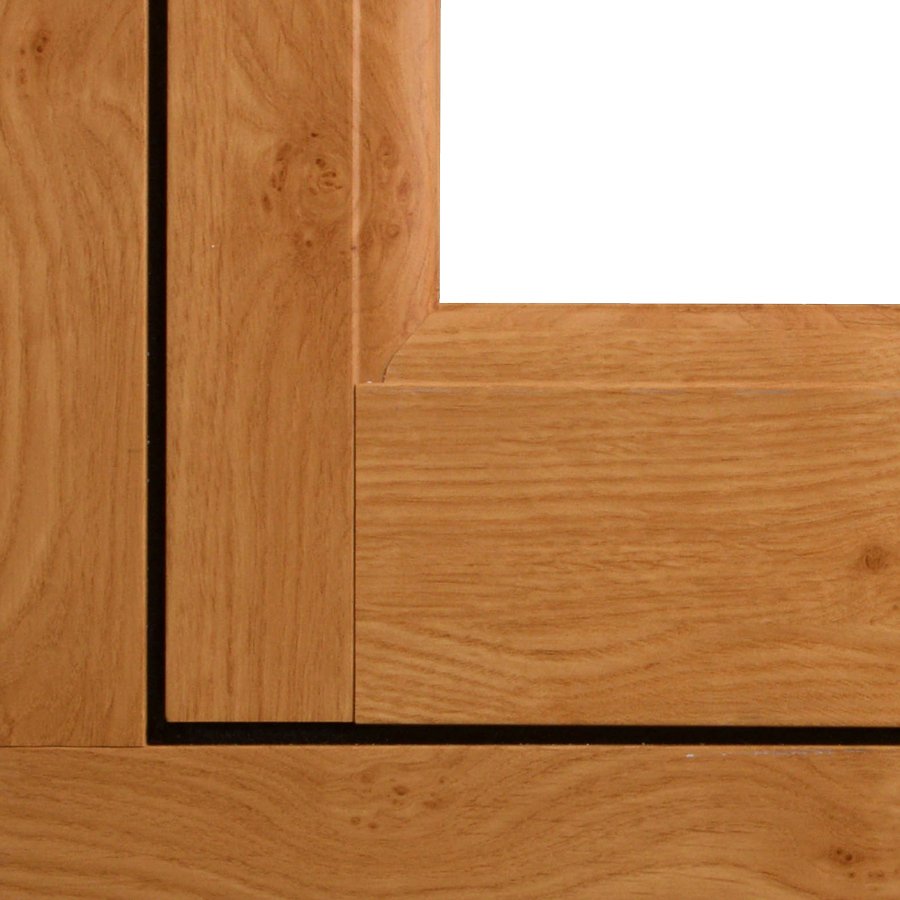

Options and hardwareOFFSET HANDLESAvailable in 8 coloursMonkey-tail handle (in 4 colours)DUMMY STAYGold (in 4 colours)Tear-drop handle (in 4 colours)DUMMY STAYAntique black (one of 4 colours)Mechanical JointsOptional mechanically-jointed frames for that traditional timber look.
-
RAL colour visualiser
Please note that our ColourTEK system can reproduce any colour for our products, not only the trade colours displayed above.
Due to various reasons, an accurate virtual representation of a RAL colour is not always possible. Physical colour swatches have painted representations of colours, and these can be found at any PlatinumNRG dealer.
-
Brochures

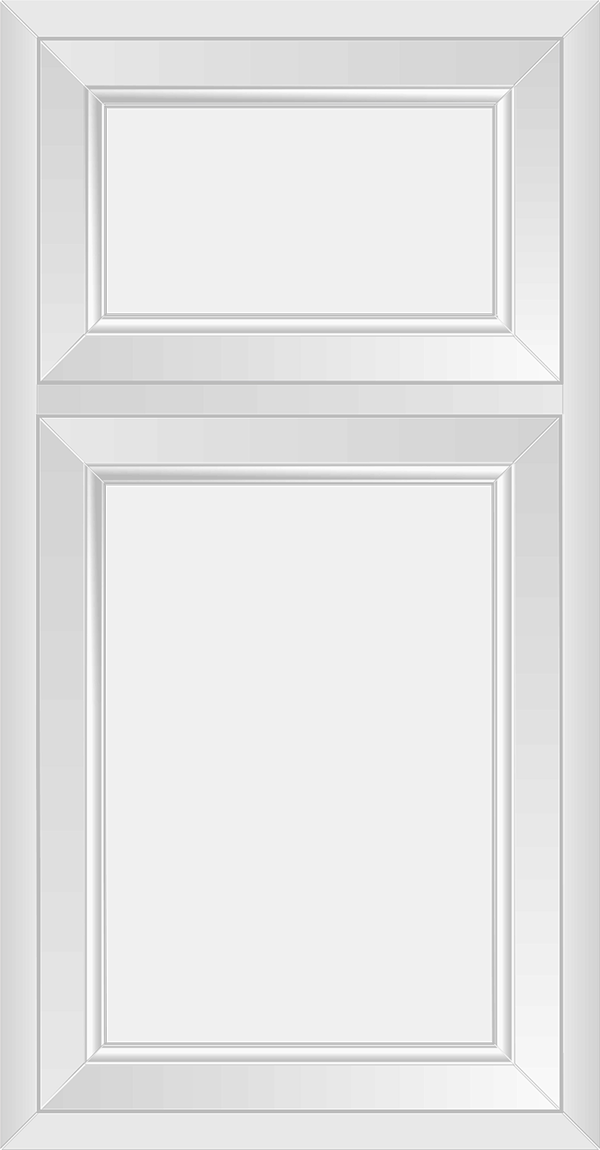

flushSASH refers to the opening sash fitting flush within the outer frame rather than protruding as with most PVCu windows. For even greater authenticity, flushSASH is available with a deep bottom rail as used on traditional timber windows along with the option of using mechanical butt joints for the frame and sash rather than fusion welds.
These traditional style products are crafted using environmentally friendly lead free PVCu profiles, and can be specified with energy efficient 28mm double glazed sealed units for optimum energy performance. They can be produced with fusion-welded or an optional mechanically-jointed frame.
For full details on this product, including all the hardware options, please see the specific brochure.
