slimSASH
beaded 70mm
PVCu casement
window in the UK
slimSASH
The opening sashes use our bespoke, slender 6-chamber PVCu profile which is exclusive to Whiteline. This state-of-the-art profile design utilises structural PVCu to minimise steel reinforcement ensuring an optimum combination of insulation and strength.
KEY FEATURES

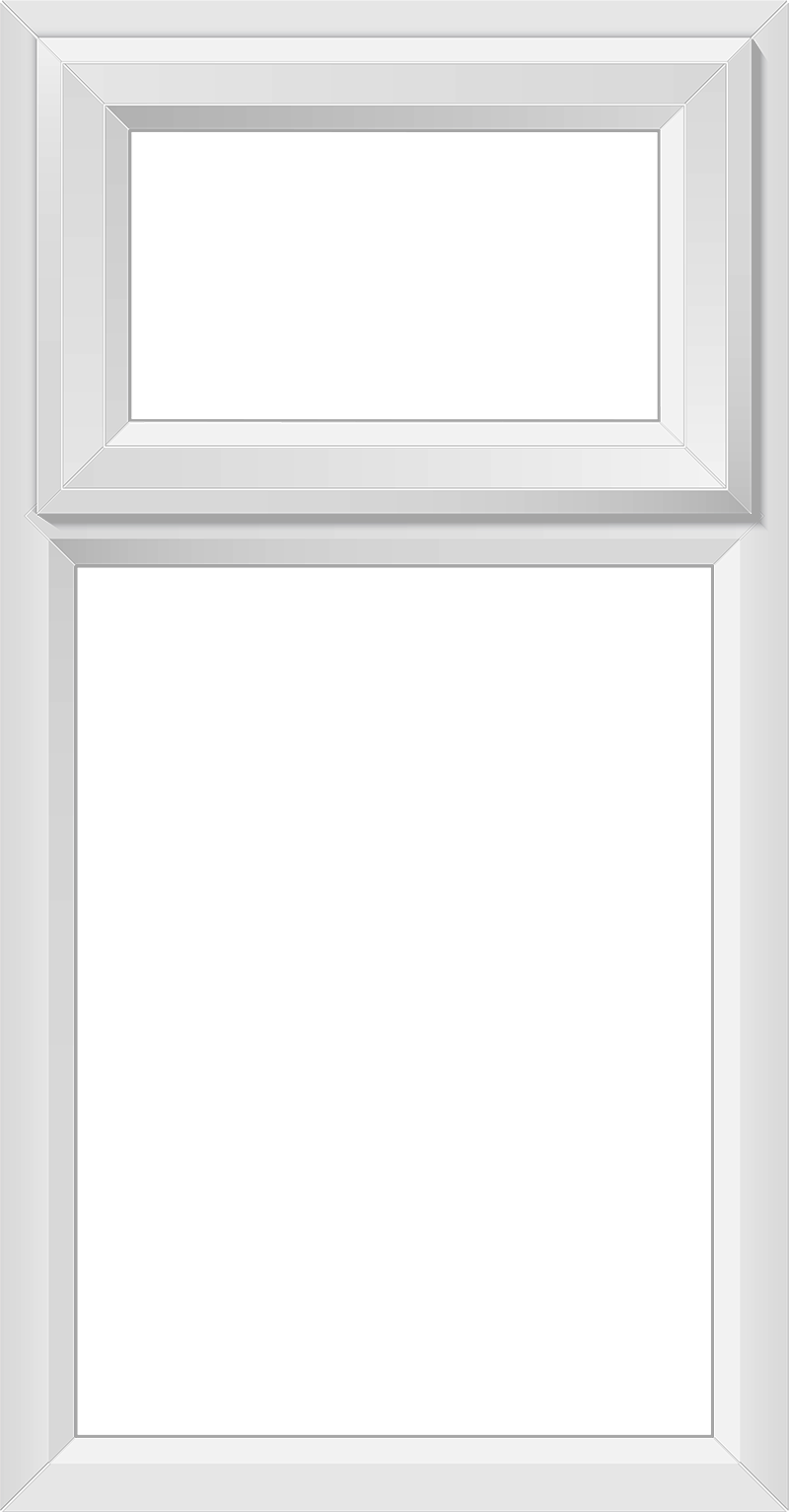

• Side or top-hung opening sashes
• Double or triple glazed OPTIONS
• Acoustic insulation OPTIONS
• Dummy (non-opening) sash OPTIONS
• Polished, easy-clean white finish
• 100% Lead-free PVCu substrate
• Black, White or Grey warm-edge spacer bar
• High-tech 6-chamber profile construction uses structural PVCu rather than steel where possible
• Ultra-slim ‘almost invisible’ co-extruded glazing gaskets
• Foiled woodgrain or coloured finish OPTIONS
-

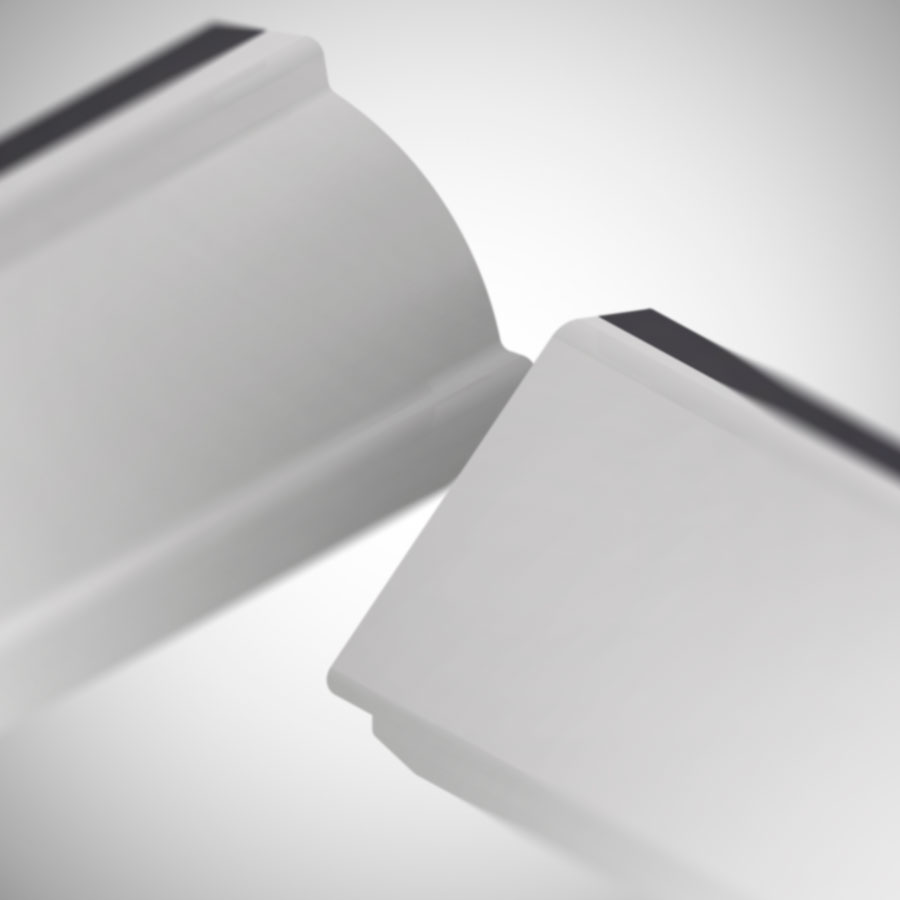

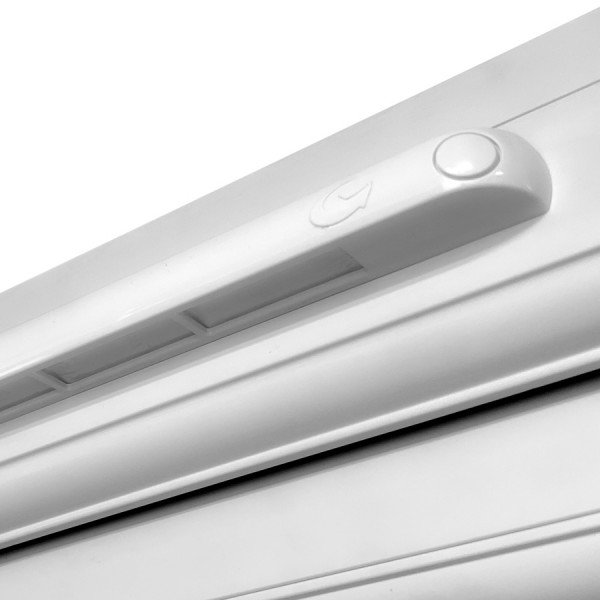

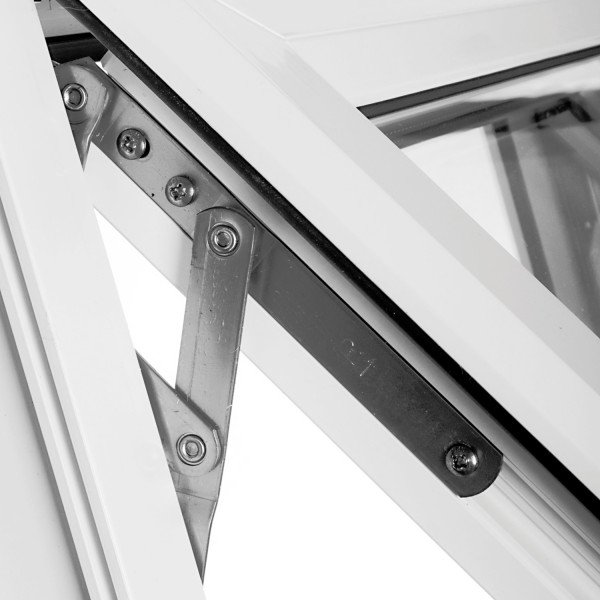

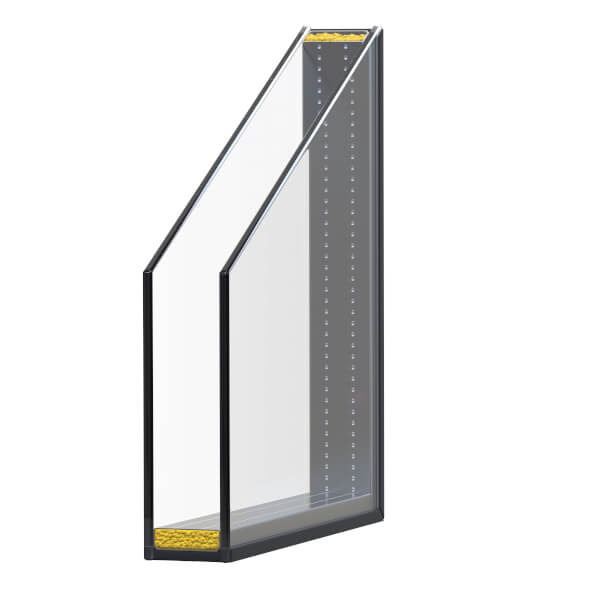

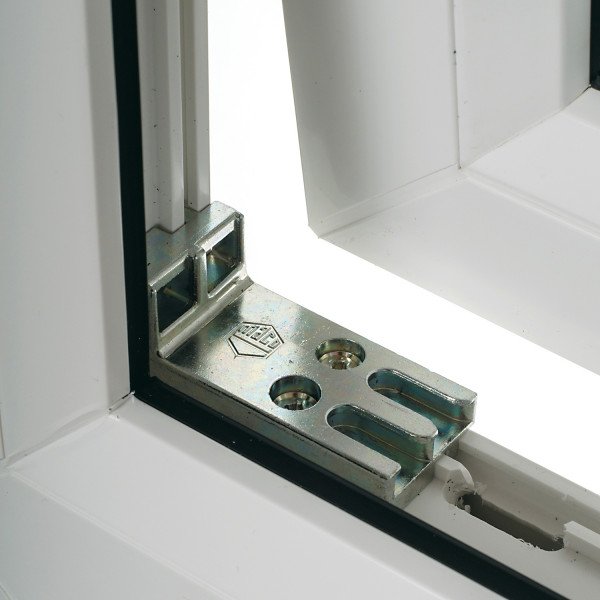

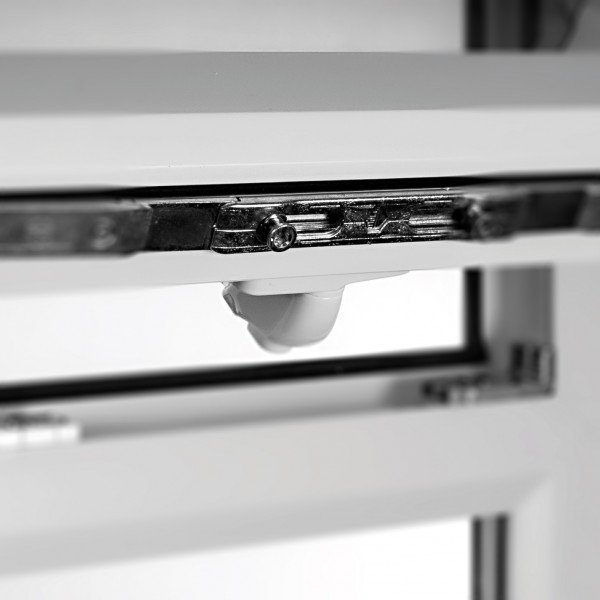

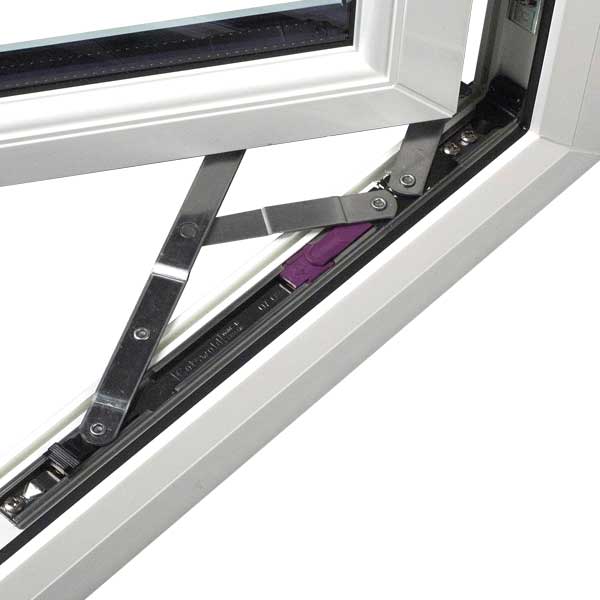

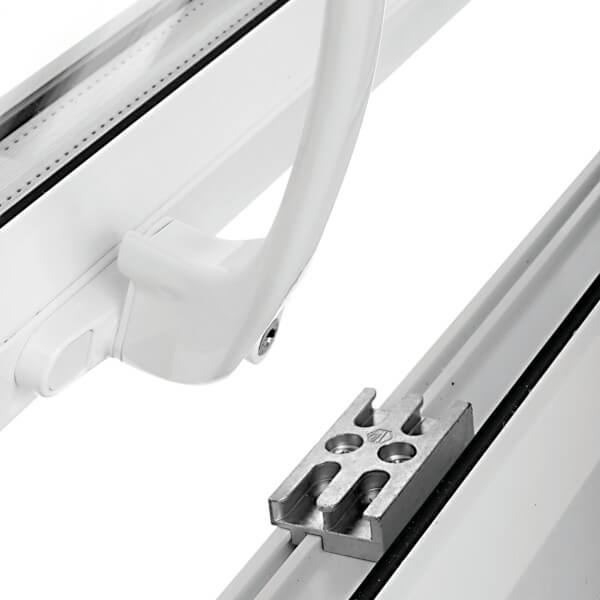

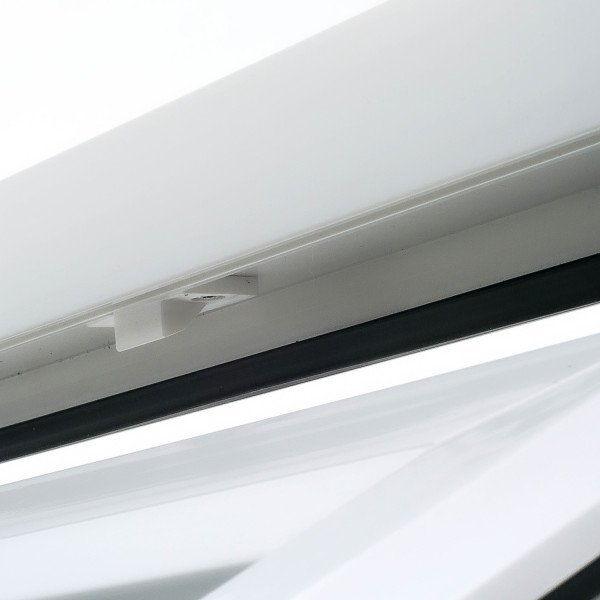

SpecificationBEADSChoice of chamfered or sculptured glazing beads to mix or match.DOUBLE-GLAZEDHigh-tech double-glazed sealed unitsHINGESCotswold easy-clean hingesDIRECTIONAL KEEPSecure keep for expanding bolts with night-vent positionPULL-IN BLOCKPull-in blocks ensure sash alignmentHINGE BOLTHinge bolts contribute to multi-point lockingNIGHT-VENT KEEPCompletely locks window in a slightly ajar positionTRICKLE VENTSPart F-compliant trickle ventilationFRICTION STAYAdjustable stays for top hung windowsSHOOT-BOLTSShoot-bolt locking (shown engaged) form multi-point lockingROLLER BOLTSExpanding roller lock and night-vent keepHANDLEOffset, easy-grip lockable handleCERTIFICATIONConforms with the applicable requirements for the UKWERWindow energy ratingU-VALUERate of heat transfer through windowFRAME DEPTHDepth of outer frame and minimum reveal sizeSIGHT LINEWidth obscured by the frame and sash combinedLEAD FREE100% lead-free stabilisers used throughout manufacture
-
Standard finishesSTANDARD FINISHES INCLUDING DUAL FINISHESWhiteWhite PVCuWhitegrainOak on whiteOakRosewood on whiteRosewood
-
Alternative finishesALTERNATIVE FINISHES INCLUDING DUAL FINISHESAnteakIrish oakSchwarzbraun (black-brown)CreamChartwell GreenRAL7012 BasaltRAL7038 AgateRAL7016 AnthraciteColourTEK spray finishesWide choice of foils
-

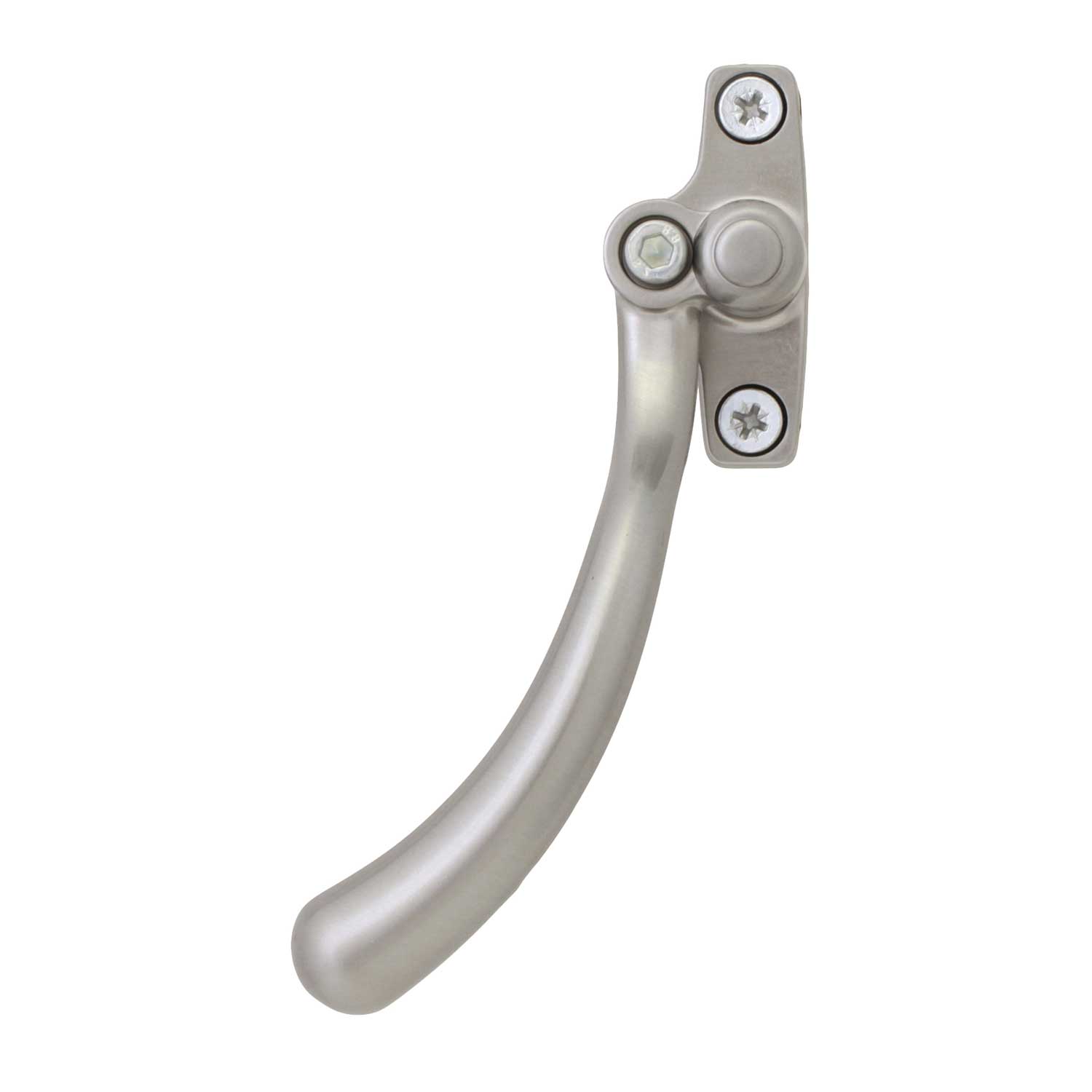

Options and hardwareTRIPLE GLAZEDHigh-tech triple-glazed sealed unitsTEAR DROPGraphite (one of 4 colours)MONKEY TAILAntique black (one of 4 colours)OFFSET HANDLESAvailable in 8 colours
-
RAL colour visualiser
Please note that our ColourTEK system can reproduce any colour for our products, not only the trade colours displayed above.
Due to various reasons, an accurate virtual representation of a RAL colour is not always possible. Physical colour swatches have painted representations of colours, and these can be found at any PlatinumNRG dealer.
-

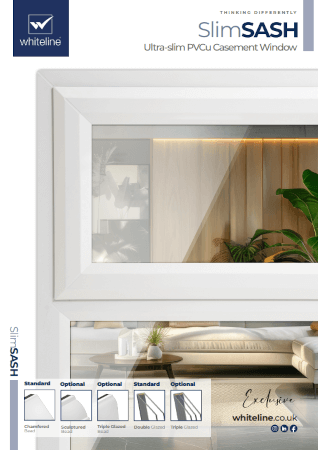

Brochures
The key-feature of our slimSASH window is the reduced sash width compared to standard 70mm windows. This slimmer design allows for a greater glass area meaning more daylight coming in and a better view out.
The deep putty-line styling means the face of the window has been reduced by 40%. This narrow face width and symmetrical feature is critical to making an equal sightline design which replicates a single glazed timber window.
The 6-chambered design is far more energy efficient than the 3, 4 and 5 chambered designs of the 1990's and early 2000's, enabling the use of more cost effective glass options.
Using high-impact, modified PVCu they are resistant to cracking from age or extreme temperatures and use fusion-welding to bond the frames and sashes for maximum strength. Push-button, key lockable handles, available in a choice of colours incorporating an additional, lockable night vent position.
For full details on this product, including all the hardware options, please see the specific brochure.
