Revival

Authentic
timber-styled
85mm PVCu
casement window

slimSASH

Revival flushSASH faithfully replicates period timber window styling, right down to the details of conventional timber hardware, such as traditional handles and working peg stays.

KEY FEATURES

• Fusion-welded or OPTIONAL mechanically-jointed frame

• Deep bottom rail OPTION

• Ultra-low profile glazing gasket means the gasket is almost invisible

• HD friction stays for top-hung windows.

• HD easy-clean/ fire escape friction stays for side-hung windows

• High security, multi-point locking system comprising of roller-cam bolts, twin shoot-bolts and optional hinge bolts

• Double-glazed units use soft coat energy-saving glass

• Black, white or grey, warm edge spacer bar

• Internally glazed for enhanced security

Specification

DOUBLE-GLAZED

High-tech double-glazed sealed units

HINGES

Cotswold easy-clean hinges

DIRECTIONAL KEEP

Secure keep for expanding bolts with night-vent position

PULL-IN BLOCK

Pull-in blocks ensure sash alignment

HINGE BOLT

Hinge bolts contribute to multi-point locking

NIGHT-VENT KEEP

Completely locks window in a slightly ajar position

ROLLER BOLTS

Expanding roller lock and night-vent keep

SHOOT-BOLTS

Shoot-bolt locking (shown engaged) form multi-point locking

FRICTION STAY

Adjustable stays for top hung windows

TRICKLE VENTS

Part F-compliant trickle ventilation

WINDOW HANDLE

Offset, easy-grip lockable handle

WER

Window energy rating

U-VALUE

Rate of heat transfer through window

Depth of outer frame

SIGHT LINE

Width obscured by the frame and sash combined

No lead stabilisers used in manufacture

CERTIFICATION

Conforms with the applicable requirements for the UK
Standard finishes

STANDARD FINISHES INCLUDING DUAL FINISHES

White (available in 8 colours)

Whitegrain

White PVCu
Alternative finishes

ALTERNATIVE FINISHES INCLUDING DUAL FINISHES

Wide choice of foils

Anteak

Cream

Chartwell Green

Irish oak

Schwarzbraun (black-brown)

RAL7012 Basalt

RAL7038 Agate

RAL7016 Anthracite

ColourTEK spray finishes
Options and hardware

OFFSET HANDLES

Available in 8 colours

Deep Timber-look Cill

Deep Timber-look Cill option

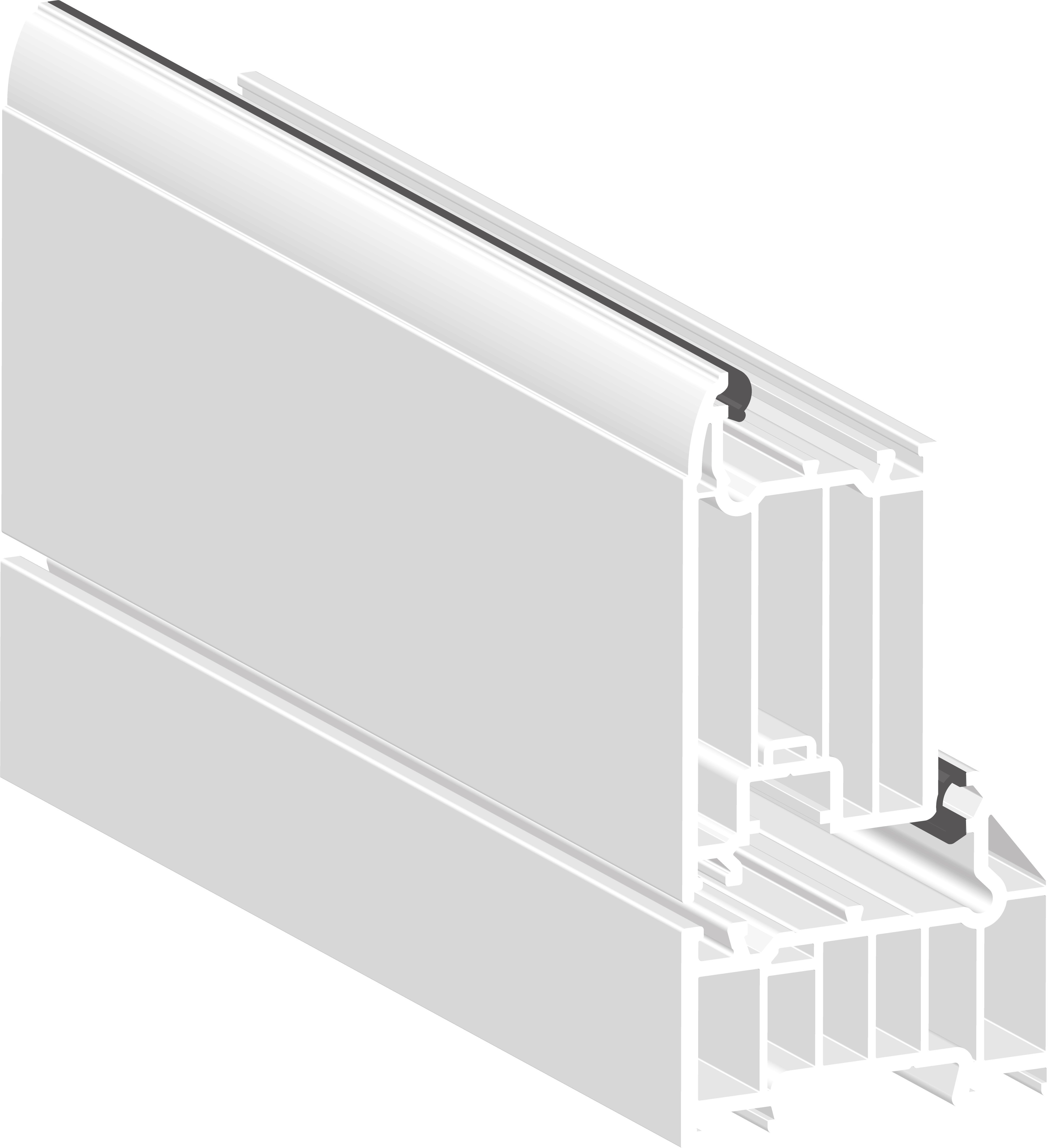

Deep Bottom Rail

Deep Bottom Rail option

Mechanical Joint

Mechanically-Jointed option
RAL colour visualiser

Please note that our ColourTEK system can reproduce any colour for our products, not only the trade colours displayed above.
Due to various reasons, an accurate virtual representation of a RAL colour is not always possible. Physical colour swatches have painted representations of colours, and these can be found at any PlatinumNRG dealer.
Brochures

Click on a brochure to view inside

View all brochures

Revival takes a magical step back in time for the great looks of authentic timber window detailing but with all the benefits of low maintenance PVCu.

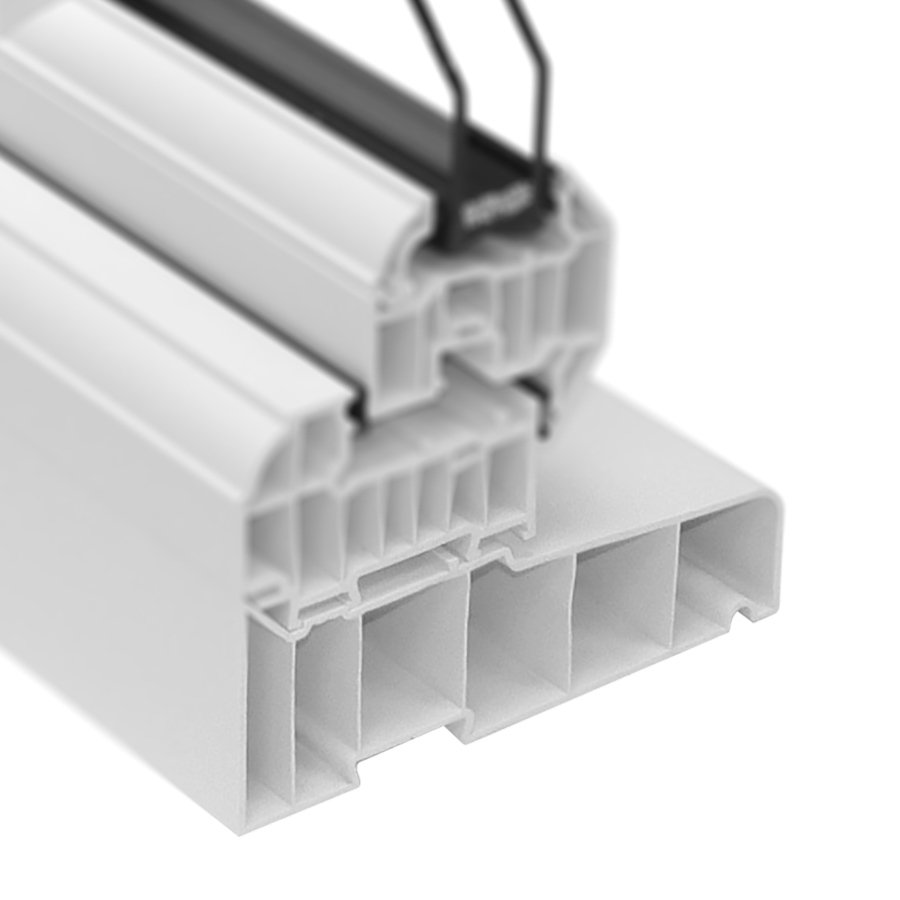

The unique new 85mm deep frame incorporates seven chambers, for optimal thermal performance and strength. A classic, deep sculptured edge detail with transoms and mullions that can be mechanically jointed to replicate traditional mortise and tenon joints.

Based on the thermally efficient flushSASH window, Revival offers the authenticity of a pre-1930’s timber window combined with 21st century benefits – featuring a number of exclusive enhancements.

A choice of either a chamfered or a more traditional sculptured sash are available. Further exclusive PlatinumNRG options are the 50mm thick cill which is 163mm wide and features traditional throat drip detail for a realistic timber effect and our Deep Bottom Rail option.
